Exploded View of Dana 44F Front Axle From Dodge Power Wagon

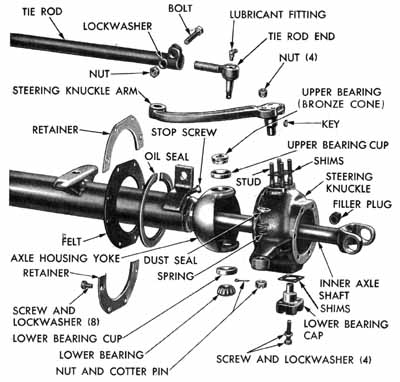

An exploded view of a Dodge Power Wagon Dana 44F front axle.

Exploded view of Dana 44F driven front axle steering knuckle
assembly from Dodge W100 1/2 & W200 3/4 ton Power Wagons.

A closer view of the 44F's steering knuckle U-joint.
